12 Head Multihead Weigher with Stainless Steel 304/316 Construction and 10" Color Touch Screen for High-Accuracy Weighing

12 Head Multihead Weigher

Stainless Steel 304/316 Combination Scale

10" Color Touch Screen Belt Weigher

Luogo di origine:

Guangdong, Cina

Marca:

TOUPACK

Certificazione:

Contattaci

Chiedi un preventivo

Dettagli del prodotto

Voltaggio:

220 V

Energia:

1 kW

Dimensioni:

1.900 mm(L)*1.240 mm(L)*1.207 mm(A)

Peso:

380 CHILOGRAMMI

Materiale:

acciaio inossidabile 304/316

Sistema di guida:

Motore passo-passo

Pesata massima:

20-5.000 g

Precisione:

x (0,5)

Intervallo scala minima:

0,1 g

Velocità massima:

bpm 40

Pesatura della dimensione della tavola:

250*160 mm

Sistema di controllo:

PLC

HMI:

schermo touch colorato da 10 pollici

Alimentazione elettrica:

AC220V ±10% 50HZ/60HZ

Funzione:

Impermeabile

Termini di pagamento e di spedizione

Quantità di ordine minimo

Prezzo

$6,800-16,000

Prodotti correlati

video

12 Head Multihead Weigher with Stainless Steel 304/316 Construction and 10" Color Touch Screen for High-Accuracy Weighing

Ottieni il miglior prezzo

Stainless Steel 304/316 Combination Weigher with 220V Power and 1 KW Output for High-Accuracy Fruit Packing

Ottieni il miglior prezzo

Automatic Multihead Weigher Packing Machine for Food Application with 5-50 Bag/min Speed and Plastic Packaging

Ottieni il miglior prezzo

500 KG 220 V 1 Year Automatic Multihead Weigher Packing Machine for Food and Granule Products

Ottieni il miglior prezzo

Contattaci

Contatta ora

Descrizione del prodotto

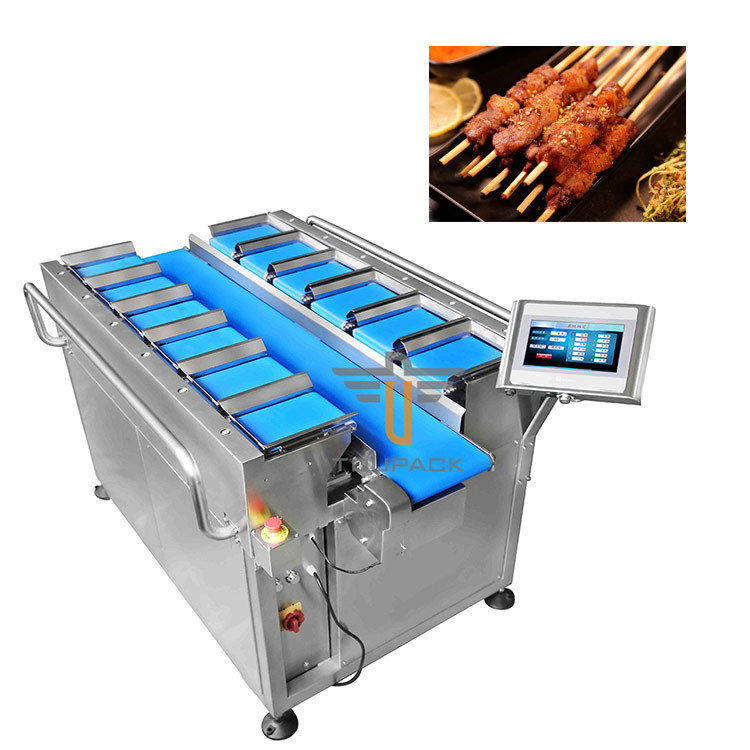

12 Head Multihead Weigher for Kebab Weighing Multistation Belt Combination Scale

High-precision 12-head multihead weigher designed specifically for kebab weighing applications with multistation belt combination technology.

Technical Specifications

Model	TY-ZHZ121P160-01-13	TY-ZHZ141P160-01-13
Max. Weighing (one belt)	20-5,000g	20-5,000g
Accuracy	x (0.5)	x (0.5)
Min. Scale Interval	0.1g	0.1g
Max. Speed	40 BPM	40 BPM
Size of weighing table	250*160mm	250*160mm
Control System	PLC	PLC
HMI	10" color touch screen	10" color touch screen
Power Supply	AC220V ±10% 50HZ/60HZ, 1KW	AC220V ±10% 50HZ/60HZ, 1KW
Packing Dimension	1,900mm(L)1,240mm(W)1,207(H)mm	2,000mm(L)1,200mm(W)1,240mm(H)
Machine weight	280kg	275kg
Package weight	340kg	375kg

Company Advantages

Wide Range of Product Working in weighing, packaging, conveying, multi-weight sorting and detecting machines.
Product Patents Almost all of our products have gained CE certificate, ISO9001 certificate, IP65 and IP67 Waterproof and Dustproof certificate.
Professional R&D Team The number of skilled engineers take up 63% of total employees.
10+ Years of Customized System Integration Providing all kinds of customized intelligent weighing and packaging solutions.
Complete Technical Support All of products is at least 12 month warranty and any enquiry will be responded within 24 hours.
After-Sale Service TOUPACK has setup its after-sale service in California, USA and Sichuan and Shanghai, China.
